Description
Specifications

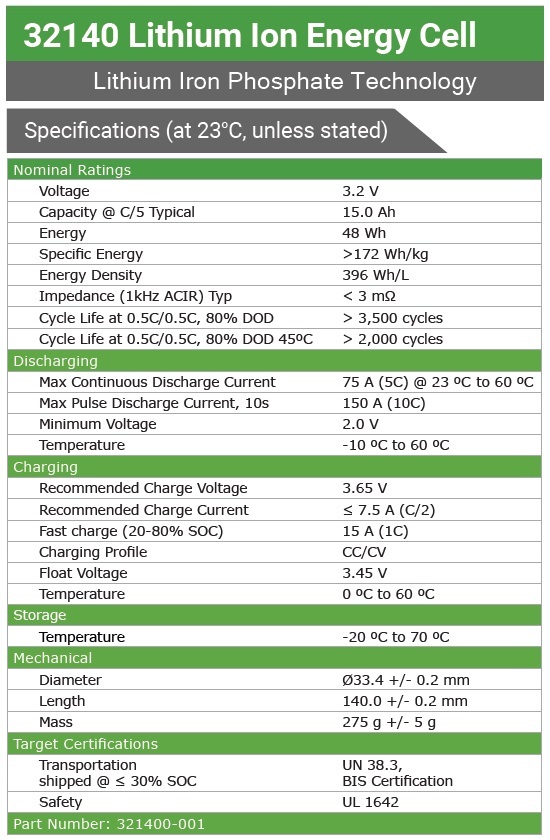

LithiumWerks AER32140m2A1 Specifications
| Part Number: 321400-001 | ||
| Specifications (at 23ºC, unless stated) | ||
| Nominal Ratings | ||
| Voltage | 3.2 V | |
| Capacity @ C/5 Typical | 15.0 Ah | |
| Energy | 48 Wh | |
| Specific Energy | 185 Wh/kg | |
| Energy Density | 396 Wh/L | |
| Impedance (1kHz ACIR) Typ | < 3 mΩ | |
| Cycle Life at 0.5C/0.5C, 80% DOD | > 3,500 cycles | |
| Cycle Life at 0.5C/0.5C, 80% DOD 45ºC | > 2,000 cycles | |
| Discharging | ||
| Max Continuous Discharge Current | 45 A (3C) @ 23ºC to 60ºC | |
| Max Pulse Discharge Current, 10s | 60 A (4C) | |
| Minimum Voltage | 2.0 V | |
| Temperature | -20ºC to 70ºC | |
| Charging | ||
| Recommended Charge Voltage | 3.65 V | |
| Recommended Charge Current | ≤ 7.5 A (C/2) | |
| Fast charge (20-80% SOC) | 30 A (2C) | |
| Charging Profile | CC/CV | |
| Float Voltage | 3.45 V | |
| Temperature | 0ºC to 60ºC | |
| Storage | ||
| Temperature | -20ºC to 70ºC | |
| Mechanical | ||
| Diameter | Ø33.2 +/- 0.2 mm | |
| Length | 140.0 +/- 0.4 mm | |
| Mass | 268 g +/- 2 g | |
| Target Certifications | ||
| Transportation shipped @ ≤ 30% SOC | UN 3480, UN 38.3, BIS Certification | |
| Safety | UL 1973, UL 1642, IEC 62620, IEC 62133 | |
